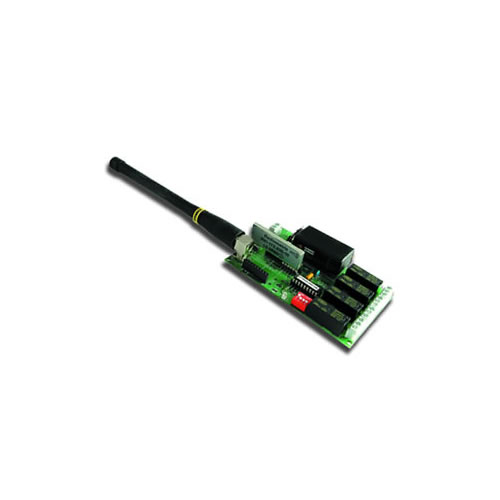

Control44 Evaluation Kit

Description

Features:

• 4-bit address, 4 bit data select switches
• 4 relays to control mains powered devices rated up to 8A, 250VAC/30VDC
• Visual indication of valid code received and active relays
• RF module range testing
• Push button for momentary control of relays
• Momentary, Latched outputs
• Dynamic relay state changes
• Setup is simple as Plug-and-Play
• RF Remote Control Demonstration
• PP3 9V battery powered. Terminal block to prolong use with external power supply

Kit Contents:

The CTR44 Evaluation Kit is supplied with the following contents:

• 2 CTR44-000-DIL
• 1 CTR44 Eval Kit PCB populated as Encoder (ENC)
• 1 CTR44 Eval Kit PCB populated as Decoder (DEC)
• 1 Single frequency Radiometrix Transmitter module (ordered separately)
• 1 Single frequency Radiometrix Receiver module (ordered separately)
• 2 9V alkaline battery (PP3)
• 2 1/4 wavelength monopole or helical antennas (ordered separately)
• 2 Jumpers
• 1 CTR44 data sheet
• 1 CTR44 Evaluation Kit manual
• 1 Data sheet of Radio module ordered
