The Delta 56 is a compact, blade-style antenna designed for wideband coverage across a broad frequency range of 600 MHz to 6000 MHz. The antenna is ideal for applications that demand reliable performance across various wireless technologies, with primary support for 5G NR, LTE, UMTS, and GSM.
With an IP67 rating, the Delta 56 is sealed against water and dust ingress, making it suitable for both indoor and outdoor mounting applications.
Sold with an SMA male connector as standard, this antenna features a swivel knuckle design that enables flexible positioning, allowing the antenna to be oriented at straight, 45°, or 90° angles, with 360° rotation to help achieve optimal signal alignment.
Key Features
- Supports 5G NR / 4G LTE / 3G UMTS / 2G Quad-band GSM
- Supports both LTE Cat M and LTE Cat NB-IoT
- Covers a wideband range from 600 MHz to 6000 MHz
- Hinged tilt/swivel joint for optimal signal alignment
- SMA (male) connector
- IP67 rated housing for outdoor and harsh environments
Typical Applications
- IoT and LPWAN for asset tracking, agriculture, and monitoring
- Building and perimeter security for LTE/5G-connected cameras
- Networking gateways
- Industrial wireless equipment
- Smart metering enclosures
- Ruggedised communication terminals
- Telemetry and control systems
Electrical Specifications
- Frequency Range: 600-960 MHz, 1600-6000 MHz
- Impedance: 50 Ω
- Polarization: Vertical
- Average Peak Gain: 3.5 dBi
- Peak Gain: 6.9 dBi
- Average spherically integrated total gain:
- 600-960 MHz: -3.50 dBi
- 1600-6000 MHz: -2.17 dBi
- Efficiency: 60%
- VSWR: <2.5
- Input Power: 1 W
- Number of Ports: 1
- Directionality: Omni-directional
- Ground Plane Independent: Yes
Environmental Specifications
- IP Rating: IP67
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -30°C to +70°C
Mechanical Specifications
- Color Options: Black
- Cable Lengths: 5m or separate cable options
- Connector Options: SMA Male
- Mounting Method: Direct Connect
- Dimensions: Ø 188 mm (Straight) x 27 mm x 13 mm
- Weight: 25.5 g
- Housing Material: ABS Black

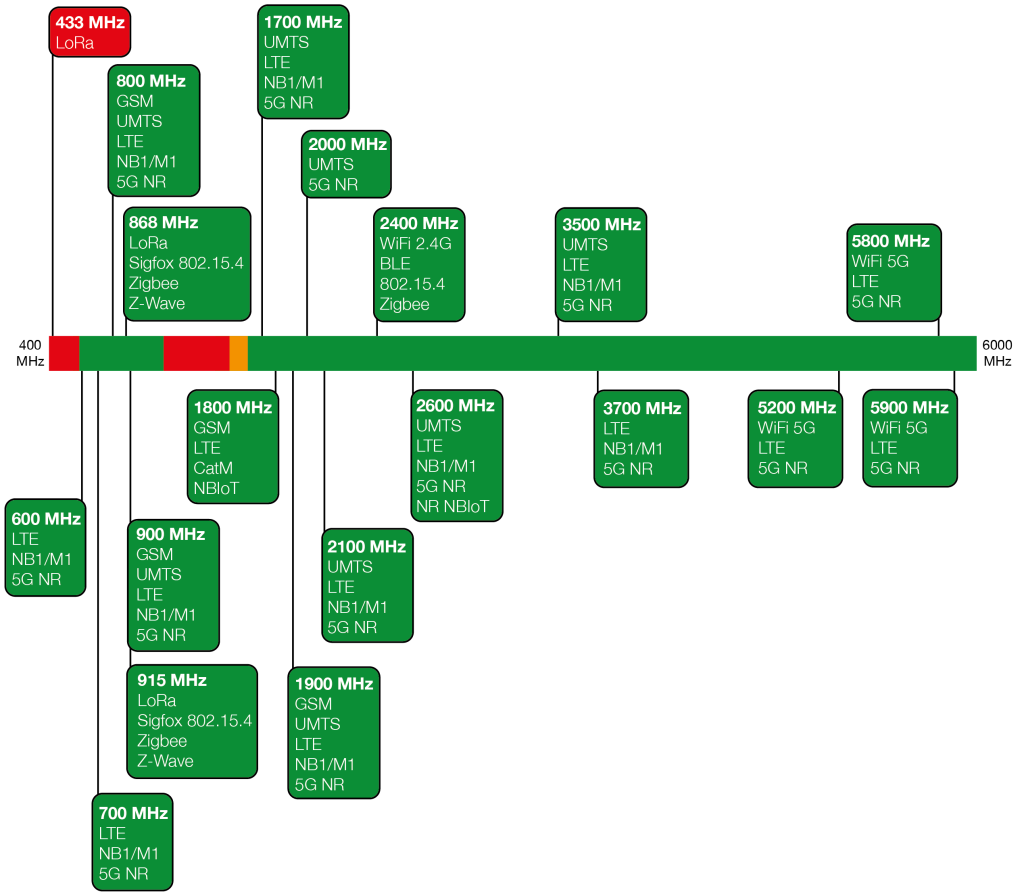

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used, and the color represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
