SNYPER-LTE Graphyte (USA) V2

Description

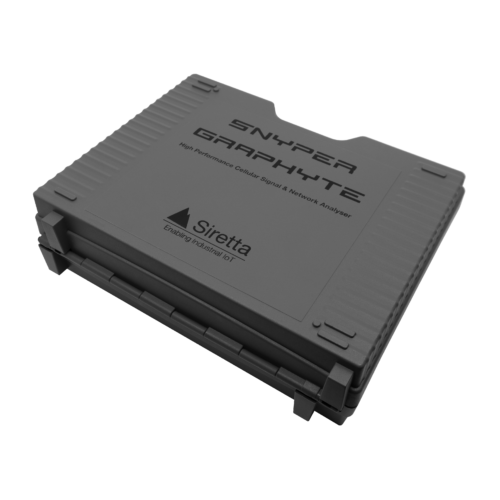

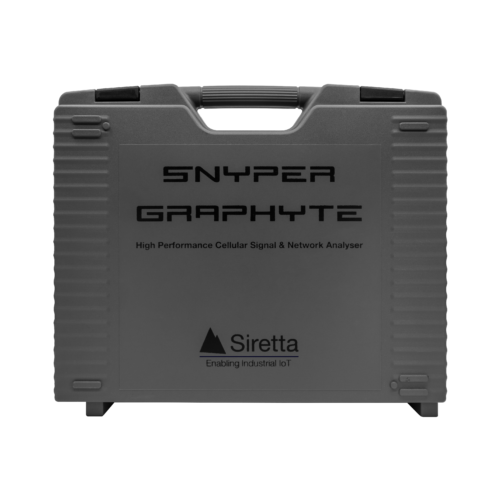

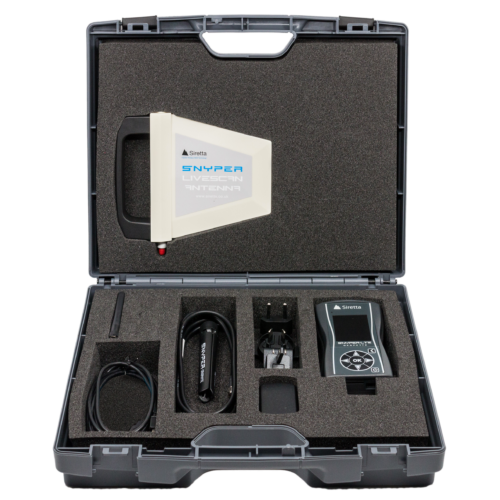

SIGNAL STRENGTH DATALOGGER: SURVEYS/STORES & LOGS ON 4G/3G USA FREQ WITH LIVESCAN ANTENNA KIT INCL.

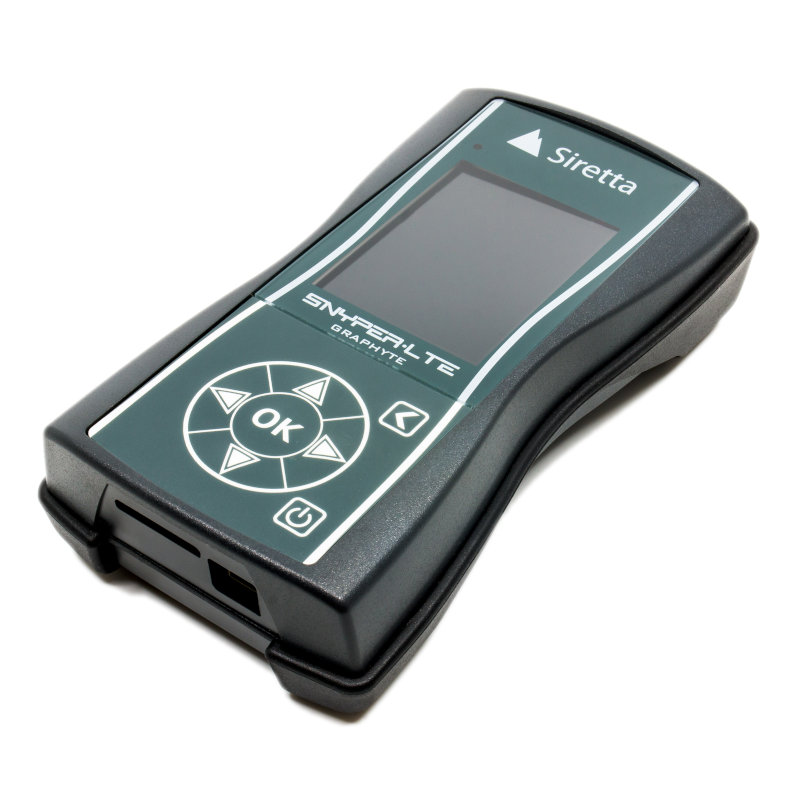

The Siretta SNYPER-LTE Graphyte (USA) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 4G/LTE (USA) & 3G/UMTS North American networks.

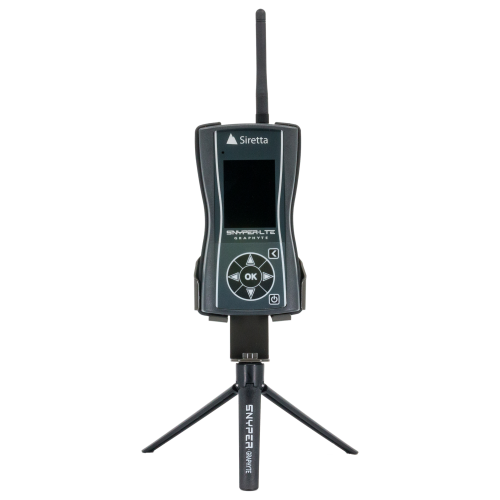

The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Three types of survey can be performed: a “FULL” survey (4G and 3G combined), 4G/LTE only & 3G/UMTS only.

SNYPER-LTE Graphyte (USA) can save multiple surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).

The SNYPER-LTE Graphyte (USA) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

The SNYPER-LTE Graphyte (USA) is an invaluable tool for understanding local network performance over hours, days and weeks to assist in the selection of reliable mobile network operators before cellular installations.

• Enhanced cellular surveying & sequential logging of new and existing installations on 4G and 3G networks
• User selectable survey logging options to determine most suitable & reliable mobile operator
• Evaluate “preferred” MNO’s performance over time
• Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
• Results are reported in CSV & graphical HTML format
• Save over 100 logged surveys with multiple liveSCAN logs

Specifications

8 Supported Bands 4G / LTE
B71 (600 MHz)
B12-B13 (700 MHz)
B14 (700 MHz)
B5 (850 MHz)
B4 (1700 MHz)
B66 (1700 MHz)
B2 (1900 MHz)

3 Supported Bands 3G / UMTS / HSPA+
B5 (850 MHz)
B4 (1700 MHz)
B2 (1900 MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces

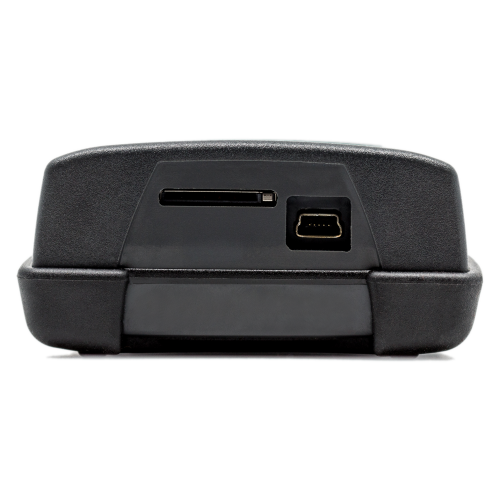

1 x USB 2.0 FS (12 MBits/s)

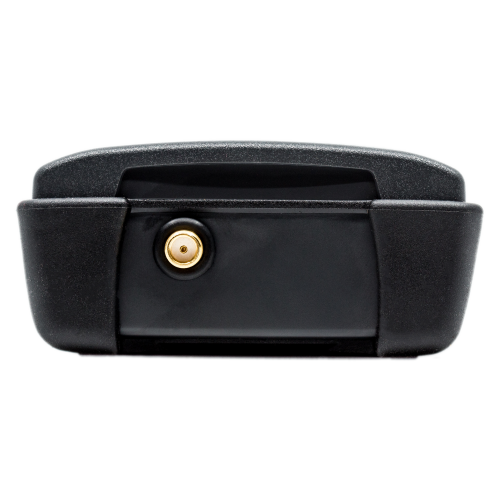

1 x SMA female cellular antenna connector
1 x Red LED charging indicator

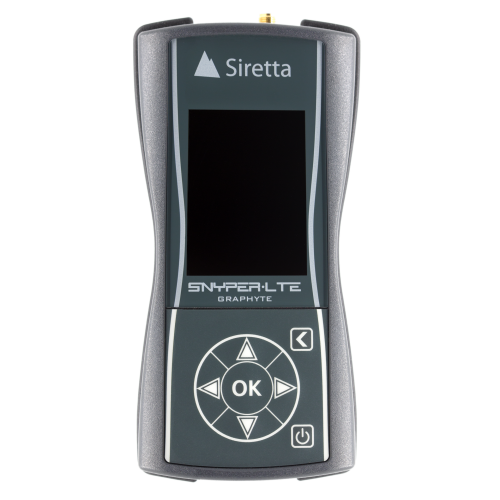

1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s

Certification
FCC
RoHS
