Ultra Low Power Global LTE-M Modem

ZETA-NLP-LTEM (GL) with RS232 and USB serial

The ZETA-NLP-LTEM (GL) is a cutting edge, extremely low power industrial modem.



Description

The ZETA-NLP-LTEM (GL) is a cutting edge, extremely low power industrial modem. It will connect equipment to the new global LTE Cat M1 and NB1 networks as they become available also providing connectivity to the existing global 2G / GSM cellular network. The modem is able to operate in an extremely low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NLP-LTEM (GL) allows it to run in an ultra low power state due to its intelligent power saving design. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

The powerful C development environment reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. As a result the ZETA-NLP-LTEM (GL) lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability.

  • Access Control Systems
  • Car Parking Payment
  • Environmental Monitoring
  • Vending Machines
  • Agriculture
  • Tank Monitoring
  • Alarm Panels
  • Industrial Sensors
  • Dialup Cellular Connectivity
  • Automatic Meter Reading
  • Utilities

Specifications

GSM Network Coverage
B2 (1900MHz)
B3 (1800MHz)
B5 (850MHz)
B8 (900MHz)

LTE Cat M / LTE Cat NB IoT Network Coverage
B1 (2100MHz)
B2 (1900MHz)
B3 (1800MHz)
B4 (AWS 1700MHz)
B5 (850MHz)
B8 (900MHz)
B12 (700MHz)
B13 (700MHz)
B18 (800MHz)
B19 (800MHz)
B20 (800MHz)
B26 (850MHz)
B28 (700MHz)

Mechanical Specifications
Dimensions: 93mm x 67mm x 28mm
Weight: 90 grams
Operating temperature range: -40 to +85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces

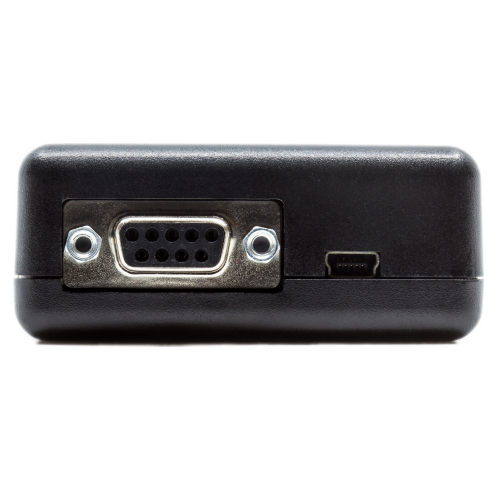

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS

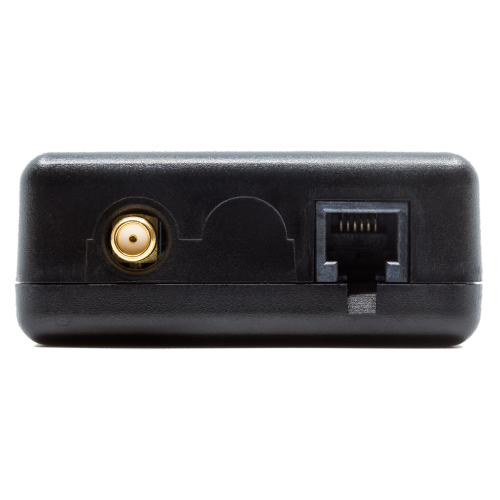

1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x standard mini SIM (2FF push-push)
3 x external LED status indicators (Red, Green, Blue)

Power and Consumption
Power: 5V to 42V
Low Power Idle: 715uA @ 12v
Low Power Idle On Network: 780uA @ 12v
Full Power Idle On Network: 9.5mA @ 12v

Certification
CE
RoHS
