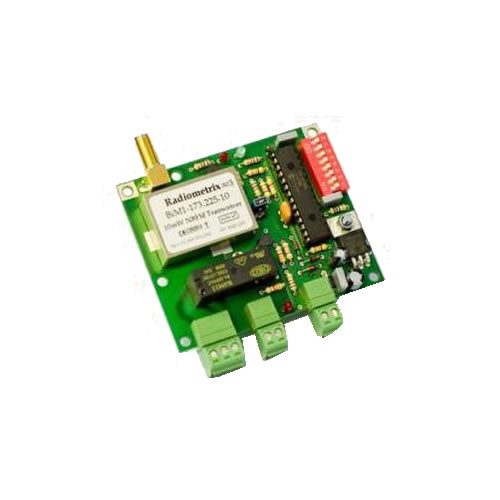

BD118

Bi-directional RF Remote Control application boards

These simple application boards use firmware based on the familiar CTA88 remote control systems to implement a bi-directional control link. A system consists of a master board (which initiates communication burst cycles) and a slave (which responds to them). In hardware terms these boards are the same, but have different firmware loaded.

Request a Quote

Description

Features

  • 8 bit address select switch
  • A relay to control mains powered devices rated up to 8A, 240VAC
  • Visual LED indication of power, valid code received and active relay
  • RF module range testing
  • Logic or Switch input for momentary control of relay
  • Momentary relay output
  • Setup is simple as Plug-and-Play

Applications

  • 8 bit address select switch
  • A relay to control mains powered devices rated up to 8A, 240VAC
  • Visual LED indication of power, valid code received and active relay
  • RF module range testing
  • Logic or Switch input for momentary control of relay
  • Momentary relay output
  • Setup is simple as Plug-and-Play

Downloads & Datasheets

  1. Full Specs PDF
