BLADE ANTENNA 2G3G4G5G

Slim moulded flexi end-fed screen antenna + FME (98mm * 23mm) GSM QUAD BAND. GPRS, GSM, 3G, 4G. DCS, ISM, UMTS compatible.

Description

Slim moulded flexi end-fed screen antenna + FME (98mm * 23mm) GSM QUAD BAND .GPRS, GSM, 3G, 4G. DCS, ISM, UMTS compatible.

We can provide custom antenna for any project. Give us a call for more information.

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas / LTE

Mountings: Adhesive Mount

Polarity: VERTICAL or HORIZONTAL

Gain: 3 dbi

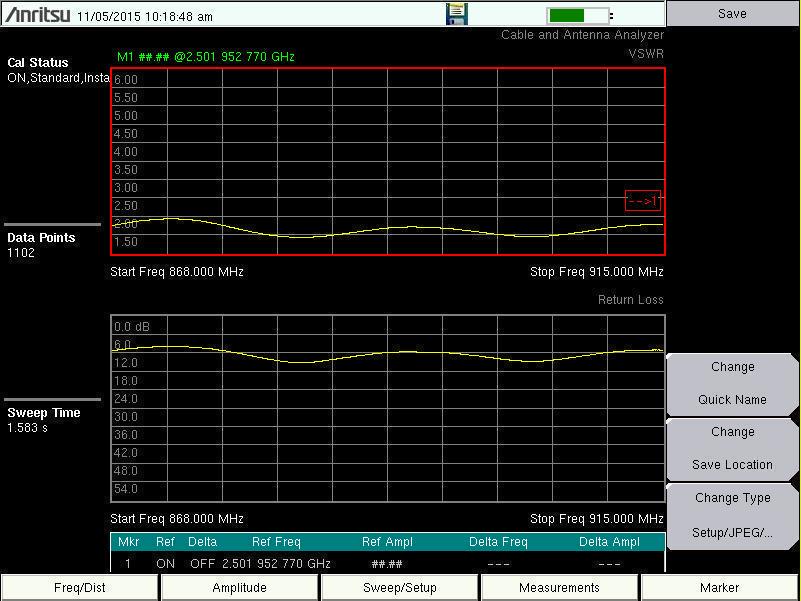

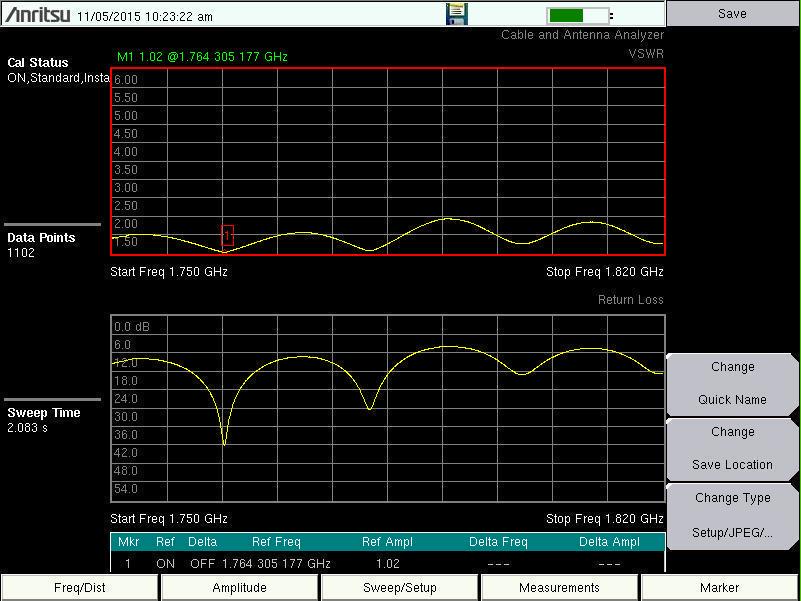

VSWR: < 1.5 to 1

Dimensions: Height: 3mm / Width: 23mm / Length: 98mm / Diameter:

Cable: 3.00 metres of RG174

Connector: PLUG TO SPECIFIED

Power Handling: 25 WATTS

Impedance: 50 OHMS

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP67
