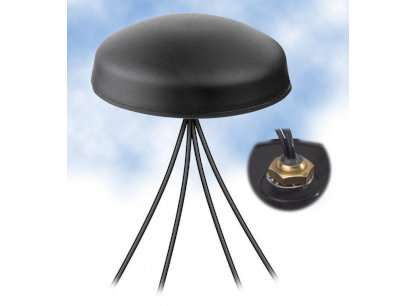

DOME MULTIBAND MIMO ANTENNA 3G/4G/5G WIFI
3G4G5GWIFI DOME ANTENNA
3G4G5G MIMODOME ANTENNA
Description
Product Description
3G4G5G MIMODOME ANTENNA
We can provide any kind of custom antenna you need. Give us a call for more details.
Product Specs
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 3 dbi

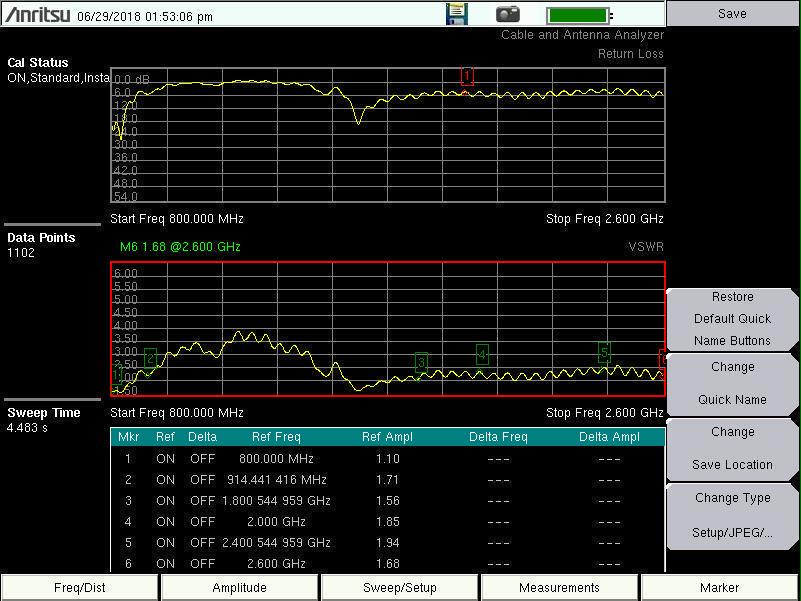

VSWR: 1.2 : 1 @ tuned frequency

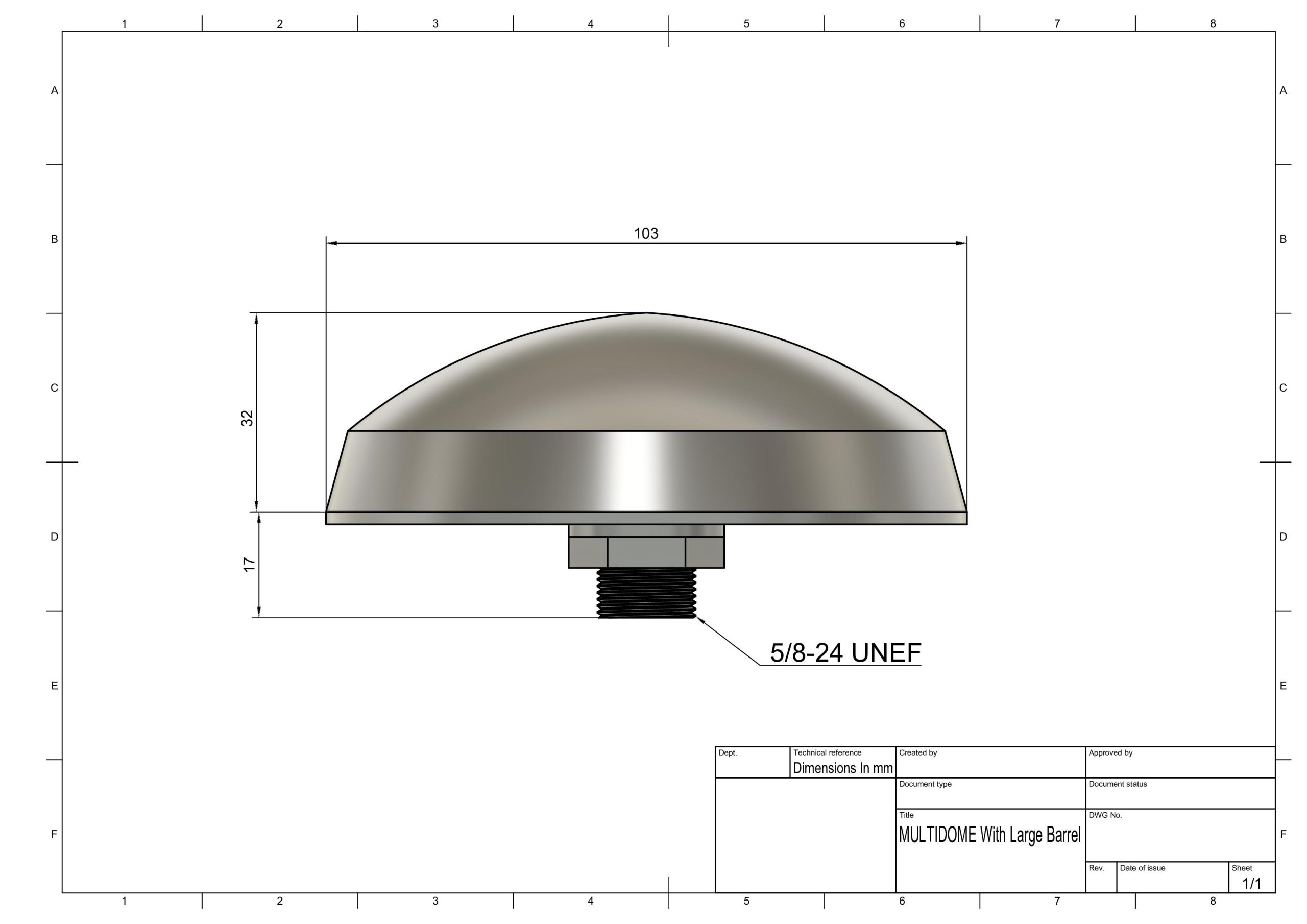

Dimensions: Height: 3 cm / Width: N/A / Length: N/A / Diameter: 92 mm
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 30 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68
