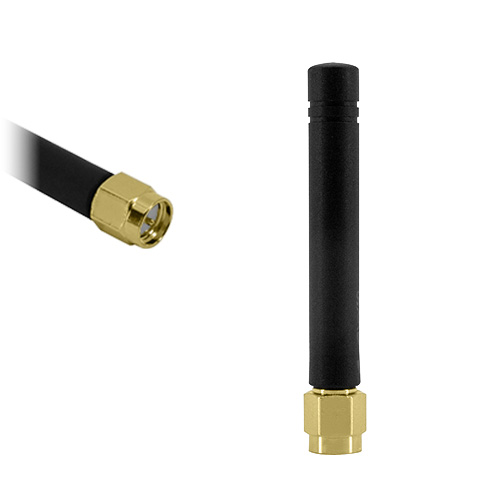

The Delta 1A Multiband antenna combines good performance with a small size, enabling its use with many of today’s GSM / GPRS (2G), UMTS (3G), LTE (4G/5G) and ISM 868 MHz band applications.
The omni-directional, radiating element is capped with a black high-grade rubber mould which allows flexibility and provides a rugged stylish finish.
Typical applications are Point of Sale Terminals, metering and alarm panel equipment.
Key Features
- Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
- Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
- Supports WiFi 5GHz spectrum
- Supports LoRa, Sigfox, ISM 868 MHz, IEEE 802.15.4
- Ground-plane independent
Electrical Specifications
- Impedance: 50 Ohm
- Polarization: Vertical
- Max Input Power: 50 W
- Ground plane independent: Yes
Environmental Specifications
- Operating Temperature range: -20 to +60 °C
- Storage Temperature range: -30 to +75 °C
Mechanical Specifications
- Dimensions: 56 mm x 7.3 mm diameter
- Weight: 5.1 g
- Connector: SMA Male
- Mounting Method: Direct Connect
- Housing Material: TPR

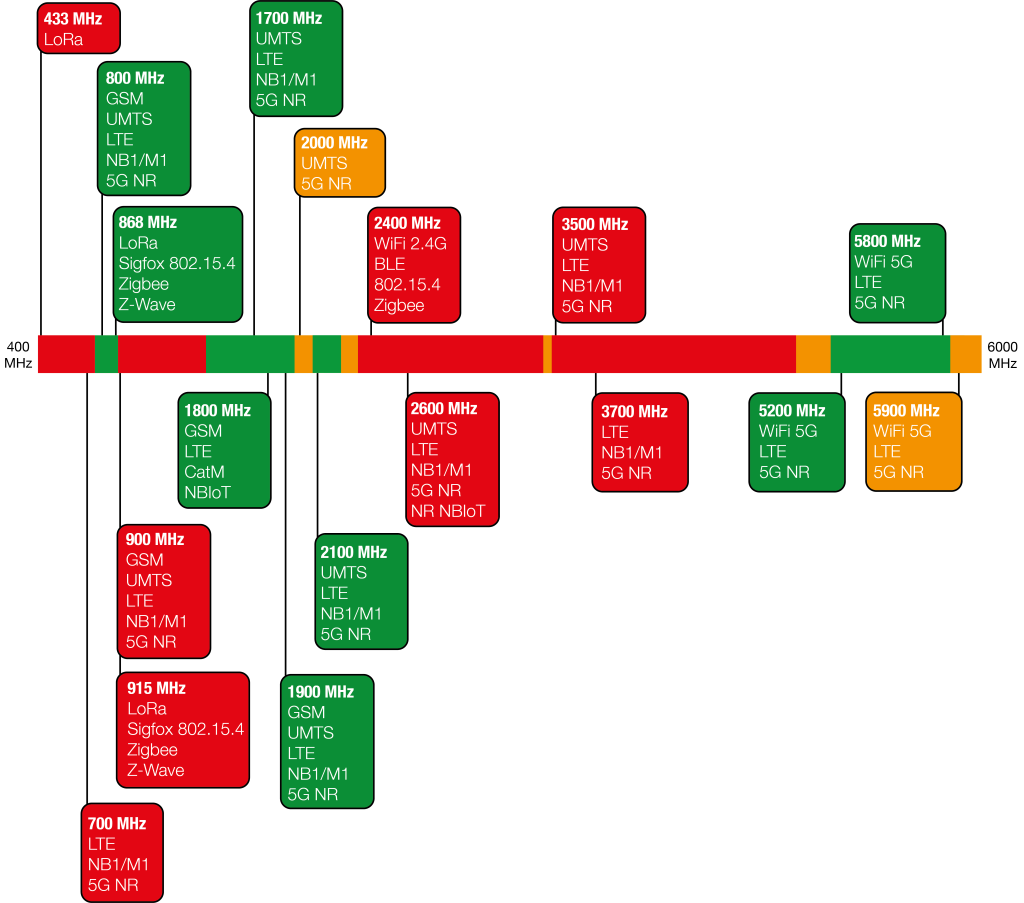

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
