The Delta 1D Multiband antenna has good performance for such a small size. It is a popular choice for customers requiring a multiband antenna for use with 2G/3G terminals and IoT communication equipment. With the new 4G/5G LTE bands there is also some coverage provided with this antenna.
The antenna is finished with a stylish black ‘cap’ radome.
Key Features
- Quad band GSM/GPRS (2G) & UMTS (3G) frequencies
- Compact Size
- Ground-plane independent
- Some 4G/5G Band Coverage
Electrical Specifications
- Impedance: 50 Ohm
- Polarization: Linear
- Max Input Power: 50 W
- Ground plane independent: Yes
Environmental Specifications
- Operating Temperature range: -40 to +85 °C
- Storage Temperature range: -40 to +85 °C
Mechanical Specifications
- Dimensions: 51 x 10.4 mm
- Weight: 6.4 g
- Connector: SMA Male
- Mounting method: Direct Connect
- Connector Plating: Gold/Nickel
- Housing materials: ABS

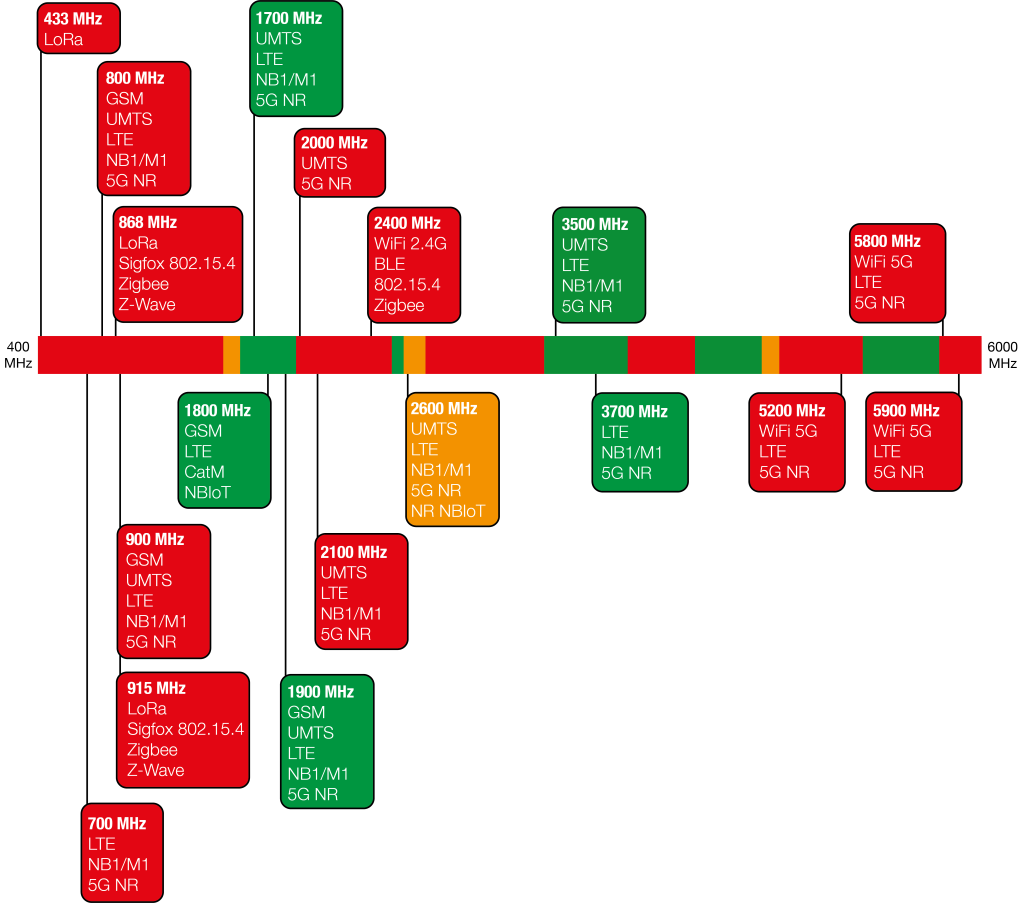

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
