DELTA 2D X/SMAM/S/RA/34

The Delta 2D is a low cost direct connect, stubby antenna tuned to the GPRS / GSM (2G), 3G, with support for 4G/5G LTE band frequencies.
Despite its small size, it performs at a high level that most stubby antennas cannot compete with.

It is commonly used for applications such as car park ticketing, utilities metering, road traffic monitoring and numerous other IoT applications.

Key Features

• Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
• Supports some LTE Cat M, LTE Cat NB, NR Cat NB bands
• Ground plane independent
• Point-to-Point and Point-to-Multipoint applications
• Does not rely on mounting on metallic surface

Electrical Specifications

• Impedance: 50 Ohm
• Polarization: Linear
• Max Input Power: 50 W
• Ground plane independent: Yes

Environmental Specifications

• Operating Temperature range: -40 to +85 °C
• Storage Temperature range: -40 to +85 °C

Mechanical Specifications

• Dimensions: 51 mm height x 10.5 mm diameter
• Weight: 6.4 g
• Connector: SMA male at right angle
• Mounting method: Direct Connect
• Housing materials: ABS

Spectral Frequency Diagram

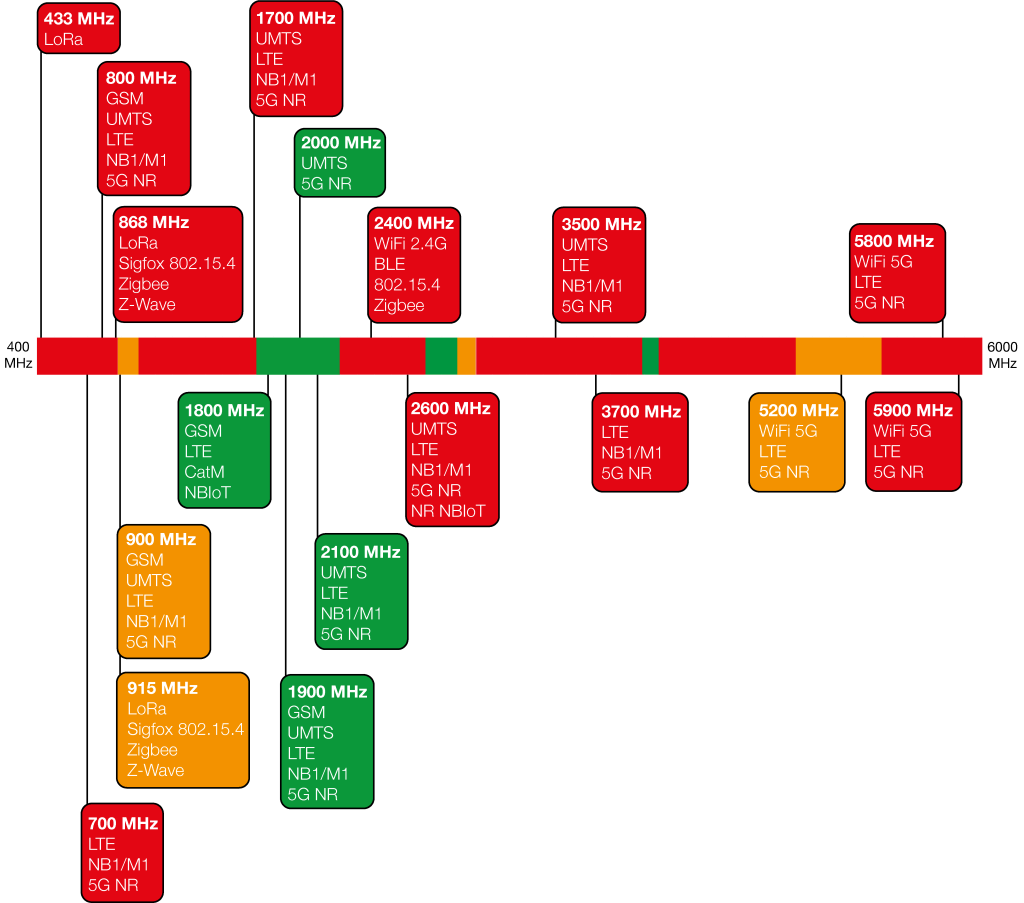

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
