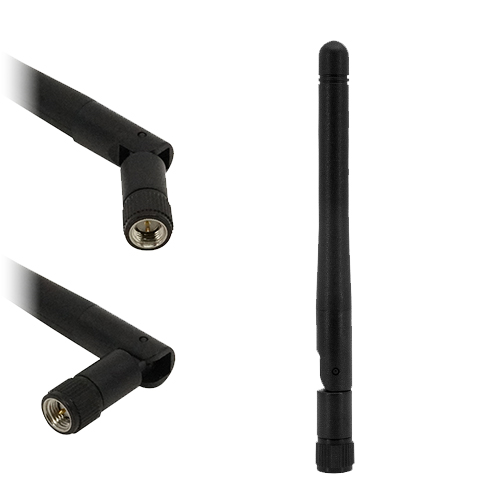

The Delta 7A primarily designed as a dual-band Wi-Fi antenna, tuned to the 2.4 GHz and 5 GHz bands.
It also supports 5G NR and 4G LTE Cellular bands.
The hinged joint provides a flexible means of setting the antenna into the optimum position for Wi-Fi transmission.
The Delta 7A supports Wi-Fi, Bluetooth, Zigbee and ISM based applications and can be used with most modern-day Wi-Fi modems that operate on the traditional 2.4 GHz and extended 5 GHz bands.
The Delta 7A is supplied with either an SMA male or a reverse polarity SMA male connector.
Key Features
- Supports 5G NR / 4G LTE
- Supports Dual-Band Wi-Fi full 2.4 GHz & 5 GHz spectrum
- Supports Bluetooth and BLE, Zigbee, SigFox, LoRa, ISM 2.4 GHz, ISM 5.8 GHz & IEEE 802.15.4 bands
- Hinged Mount
- Omni-Directional
- Adjustable mounting allows positioning for signal optimization
- Dual band flexibility – chooses least congested network
Electrical Specifications
- Impedance: 50 Ohm
- Polarization: Vertical
- Max Input Power: 5 W
- Ground plane independent: Yes
Environmental Specifications
- Operating Temperature range: -20 to +65 °C
- Storage Temperature range: -30 to +75 °C
Mechanical Specifications
- Dimensions: L108 x 10 mm Ø
- Weight: 10 g
- Connector: SMA male / reverse polarity SMA male
- Mounting method: Direct connect
- Housing materials: TPEE
Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used, and the color represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
