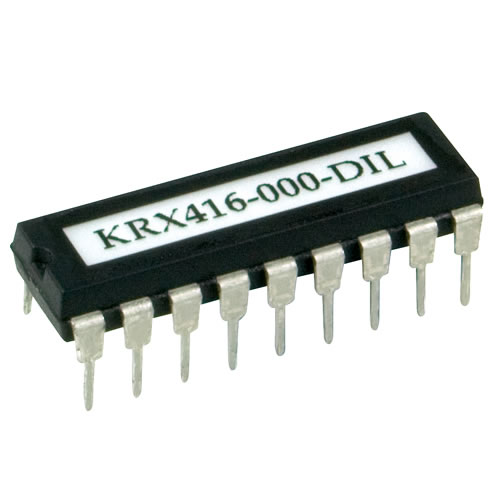

KRX416-000-DIL
Code-hopping decoder with 4 outputs
Key-code Receiver 416 is a single IC solution for decrypting and decoding Radiometrix code-hopping transmitters. The device will retain the identities of up to 16 code-hopping transmitters.
Description
Features
- Operating voltage (temperature): 4.5V-5.5V (-40?C to +85?C)
- Draws <2mA without external load
- 4 digital outputs (on/off)
- Learn input pin (activate to store a transmitter identity)
- Learn output pin (indication of a Learnt transmitter)
- Mode select pin – choice of two output modes
- Internal non-volatile memory for learning up to 16 different transmitters
- Hop-code decryption ensures that only valid transmissions are acted upon
- Manchester decoding at 1250bps (+25% -50%)
- Suitable for use with Radiometrix FM radio-receiver modules e.g. RX2A
- Internal clock – no external oscillator components needed
- Internal supply monitoring (brown-out = self-reset)
- Minimum external component requirement
- Compatible with Radiometrix code-hopping transmitters, e.g. KTX2
Applications
- Security and Alarm systems
- Status reporting and monitoring systems
- RF Remote control systems
- Industrial controls
- HVAC controls
- Door entry systems
- Simple On/Off switching
