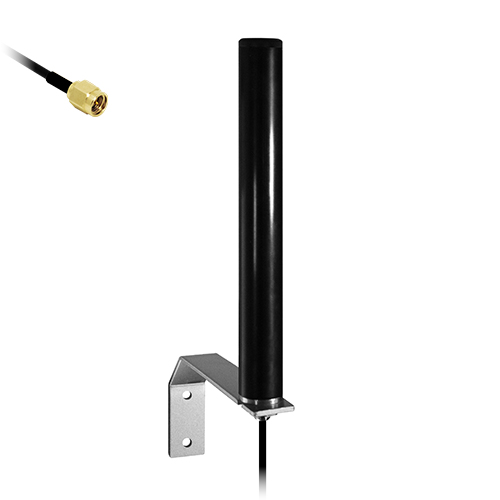

The Oscar 1A is a high-performance Omnidirectional wall/bracket mount antenna, operating on global 4G and 5G frequencies, with great performance on the ISM 868/915 MHz bands.
Ruggedly constructed with black ABS plastic over the radiating element and with a lightweight yet durable aluminum mounting bracket.
The high quality monopole design improves communication reliability for applications like remote sensor monitoring, alarm & security systems and other IoT applications demanding an all weather antenna.
Cables are terminated with either an SMA male or FME female connector type.
Alternative cable lengths or connector types may be specified for short run volume orders.
Key Features
- Supports 5G NR / 4G LTE / 3G UMTS / Quad-band 2G GSM
- Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
- Supports LoRa, Sigfox, IMT 868 MHz, ISM 915 MHz, IEEE 802.15.4
- Improved signal quality with low loss cable
- Housed in a robust ABS casing
- Bracket provides secure permanent fixing
- Does not require additional placement on metallic surface
Electrical Specifications
- Impedance: 50 Ohm
- Polarization: Vertical
- Max Input Power: 50 W
- Ground plane independent: Yes
Environmental Specifications
- Operating Temperature range: -20 to +80 °C
- Storage Temperature range: -20 to +80 °C
Mechanical Specifications
- Dimensions: 205 mm height x 25 mm diameter
- Weight: 250 g
- Connector: SMA Male
- Cable: Low Loss CFD195 4.95 mm diameter
- Mounting method: L-type Mount
- Housing materials: ABS (casing), Aluminum (radiator)
Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used, and the color represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
