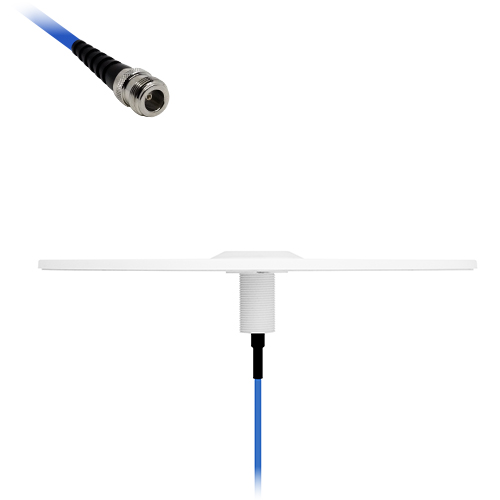

The Tango 59 is a low-profile, ceiling-mounted antenna designed for in-building wireless systems that demand high performance and broad compatibility.
Covering frequencies from 600 MHz to 8000 MHz, it supports 5G, LTE, Wi-Fi 6E, Wi-Fi 7, and ISM technologies, making it ideal for enterprise DAS installations and industrial IoT environments. Its omnidirectional radiation pattern ensures even signal distribution throughout indoor spaces, while the internal design minimizes passive intermodulation, helping to maintain cleaner signals in multi-operator and high-density deployments.
The low-profile housing blends discreetly into commercial and industrial interiors, while the plenum-rated cable allows installation in ceiling voids to meet building safety regulations.
The antenna is also compatible with LoRa and other ISM-based LPWAN protocols commonly used in smart building and sensor networks.
Key Features
- Designed for indoor Distributed Antenna Systems (DAS)
- Supports 5G NR, 4G LTE, and Wi-Fi 6E / Wi-Fi 7 technologies
- Operates across a wide 600 MHz to 8000 MHz frequency range
- Low passive intermodulation (PIM) for cleaner multi-operator signals
- Omnidirectional radiation pattern for consistent indoor coverage
- Plenum-rated cable, low-profile housing for ceiling tile integration
Typical Applications
- Enterprise office DAS for multi-network cellular coverage
- Wireless network extension in shopping centers and public venues
- Indoor connectivity backbone in logistics and warehouse environments
- Smart building deployments with ceiling-based antenna distribution
Additional Considerations
- Ground plane independent for flexible mounting in ceiling voids
- Flame-retardant radome compliant with UL94V-0 standards
- Compatible with LoRa and other ISM-based LPWAN systems
Electrical Specifications
- Frequency range: 600 – 8000 MHz
- Impedance: 50 Ω
- Polarisation: Vertical, Linear
- Average gain: 4.95 dBi
- Peak gain: 6.82 dBi
- Average spherically integrated total gain: -1.01 dBi
- Average efficiency: 77.7%
- VSWR: ≤ 2.1
- Input power: 50 W
- Directionality: Omni-directional
- Ground plane independent: Yes
Environmental Specifications
- Operating temperature range: -45°C to +75°C
- Storage temperature range: -50°C to +75°C
Mechanical Specifications
- Color options: White
- Connector options: N-Type Female
- Mounting method: Ceiling
- Dimensions: 271 Ø x 11 mm
- Weight: 0.45 kg
- Radome: ABS

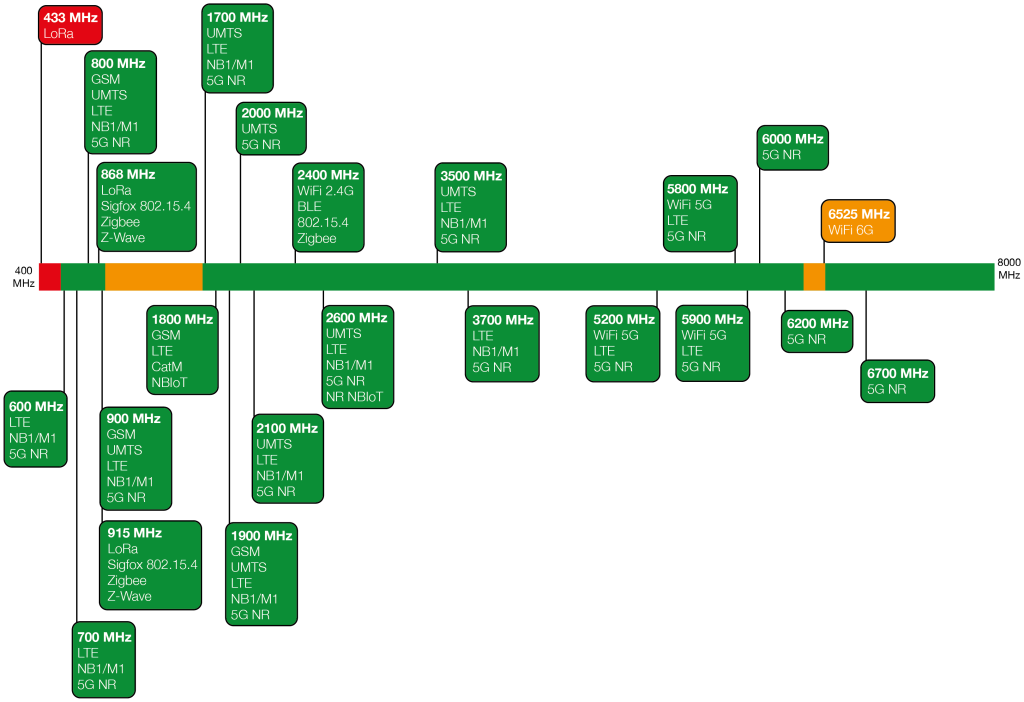

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 8000 MHz. Key frequencies are marked highlighting the technology used, and the color represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
