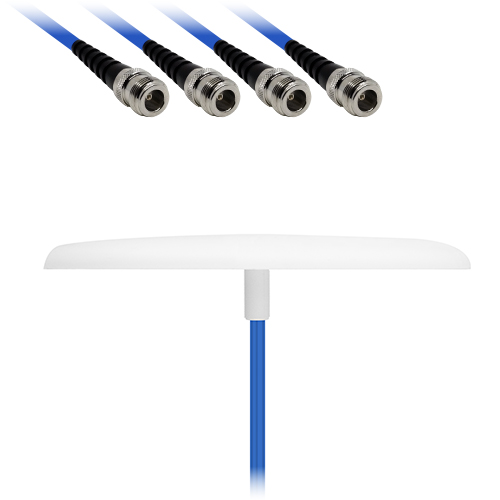

The Tango 60 is a 4-port ceiling-mounted antenna designed for high-performance indoor wireless deployments across a broad frequency range from 600 MHz to 6000 MHz. With 4×4 MiMO capability, this antenna is ideal for enhancing signal capacity and throughput in demanding multi-user environments such as enterprise buildings and commercial complexes.
The ultra-wideband coverage includes all key cellular, LPWAN, and Wi-Fi bands, making the Tango 60 suitable for converged wireless infrastructure.
Its low-profile housing blends seamlessly into indoor environments, maintaining building aesthetics while delivering strong RF performance.
Each port is fitted with an N-Type female connector and the internal PCB-based radiators ensure high efficiency and consistent gain across bands.
Key Features
- Operates between 600 MHz – 6000 MHz
- Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM frequency bands
- Supports LTE Cat M / LTE Cat NB-IoT
- Supports Wi-Fi dual band 2.4 GHz & 5 GHz
- Supports Bluetooth / Zigbee / IEEE 802.15.4 / ISM 2.4 GHz / ISM 5.8 GHz
- Ceiling mount design for indoor coverage
- Discreet low-profile housing
Typical Applications
- Indoor wireless access points in large buildings
- Commercial smart building infrastructure
- Enterprise-grade signal distribution
Additional Considerations
- Independent wideband radiators on each port
- MiMO 4×4 antenna with horizontal polarisation
- Ceiling mount for discreet indoor deployment
Electrical Specifications
- Frequency range: 617 – 960 / 1700-6000 MHz
- Impedance: 50 Ω
- Polarisation: Horizontal
- Average gain: 5.10 dBi
- Peak gain: 7.47 dBi
- Average spherically integrated total gain: -1.09 dBi
- Average efficiency: 78.15%
- VSWR: ≤ 1.5
- Input power: 50 W
- Directionality: Omni-directional
- Ground plane independent: Yes
Environmental Specifications
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +85°C
Mechanical Specifications
- Color options: White
- Ports: 4x MiMO
- Connector options: N-Type Female
- Mounting method: Ceiling
- Dimensions: Ø358 x 23 mm
- Weight: 0.85 kg
- Radome: ABS

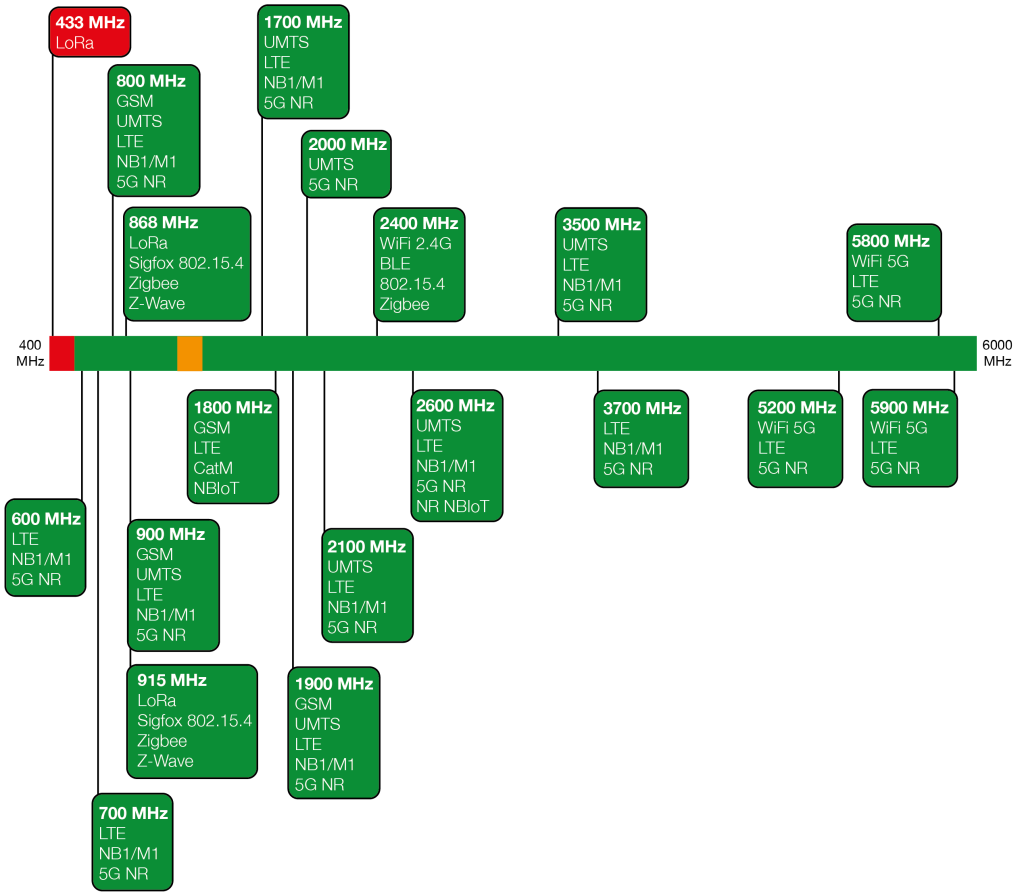

Spectral Frequency Diagram
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used, and the color represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.
Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.
