CTA28

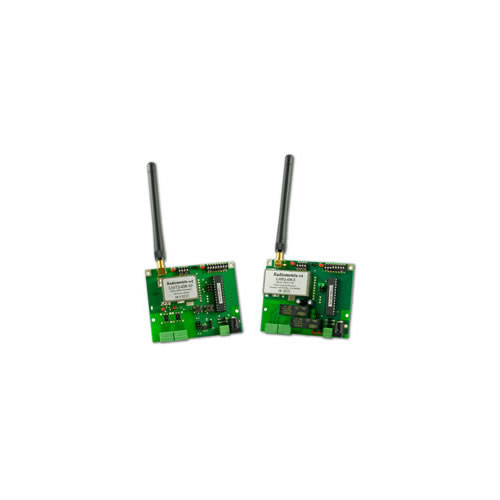

CTA88 chip based 2 channel application boards
The CTA88 chip is a simple encoder/decoder for use with ISM band telemetry modules. It permits a simple, one way wireless link to be established, for simple remote control applications, with a minimum of effort and no customer software input. These tx and rx application boards are designed to allow easy evaluation of the CTA88 device in elementary jobs. They provide simple 2 channel implementations, using either LMT/LMR or BiM footprint radio modules.
Description
Features
- 8 bit address and 2 bit data select switches
- 2 relays to control mains powered devices rated up to 8A, 250VAC/30VDC
- Visual indication of valid code received and active relays
- RF module range testing
- Push button for momentary control of relays
- Momentary, Latched outputs
- Dynamic relay state changes
- Setup is simple as Plug-and-Play
- RF Remote Control Demonstration
Applications
- Wireless Security and Alarm systems
- Emergency assistance call system
- Status reporting and monitoring systems
- RF Remote control systems
- Industrial controls
- HVAC controls
- Simple On/Off switching
- Long range telecontrol with narrow band FM radios
